FIA Approved Seat Insert Kit & Head Restraint

BSCI, Inc. continues its advancement in the development of foam for use in energy management in motorsports. Through extensive research and development, we have developed foam to meet and exceed FIA specifications for materials used in sports car headrests for driver safety in motorsports. ENER-CORE EC 50 was developed in accordance with higher standards governing the materials that can be used for head protection. EC 50 will not melt or drip in a fire and is also a self-extinguishing material.

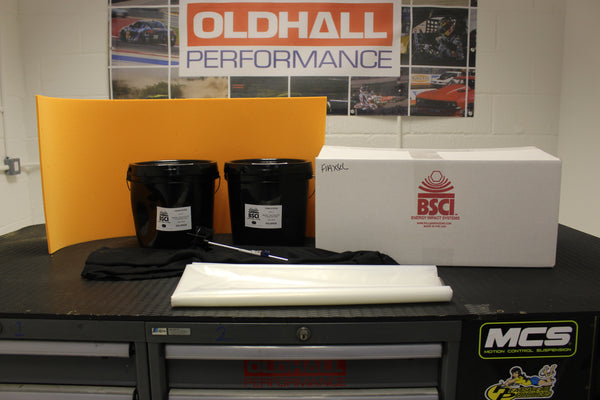

The kit includes the following:
2 Container of foam (Part A and Part B)
Sheet of foam
1 roll of double sided tape
1 roll of black gaffers tape
1 plastic baf
Carbon X cloth
1 mixer

Addition foam sheets are available for purchase.

Fitting instructions can be downloaded  here.

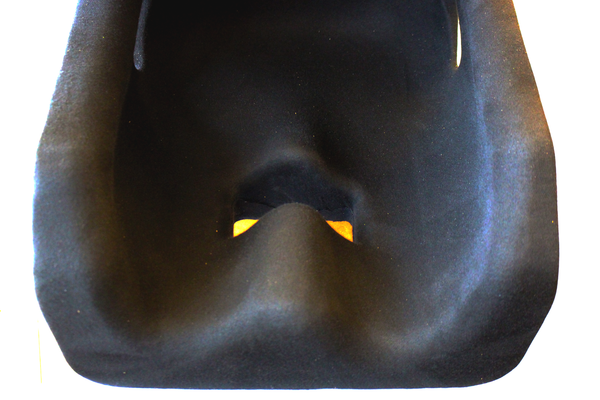

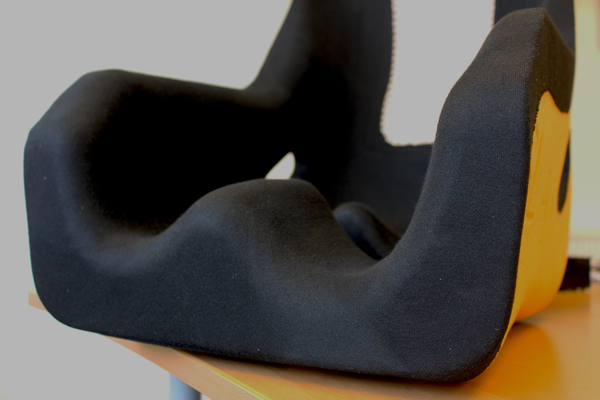

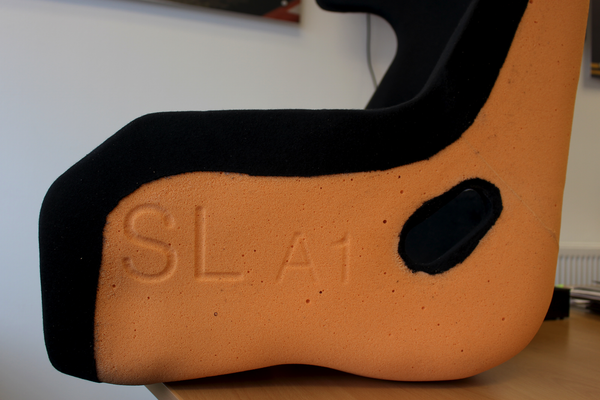

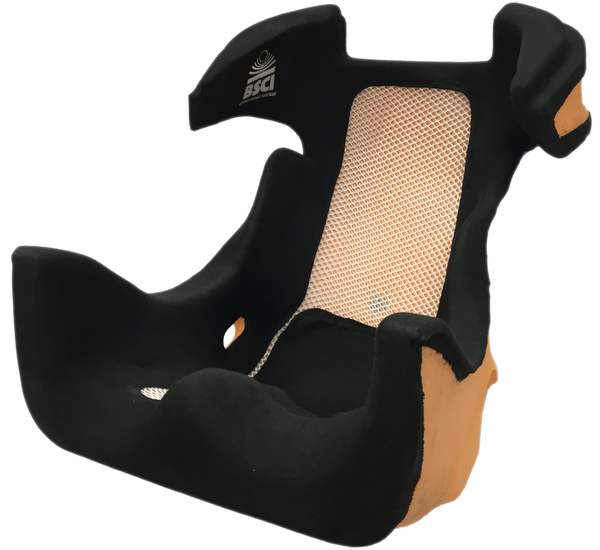

We also have the ability to 3D machine inserts for you, similar to the image above. Please contact us for information on this.

EC 50 can be molded by BSCI, Inc. to fit complex shapes and designs. EC 50 is also available in block or sheet in one color (orange) and is easily machined or cut to the desired shape.

Specifications:

• Material: Open-cell, highly engineered EA urethane foam
• Density: 75kg/m³
• Operating temperature: 204°C

EC 50 is available in the following standard size:

• 41cm x 91cm outside dimensions and can be cut from 0.32cm - 12.7cm thick
