Heatshield Armor™

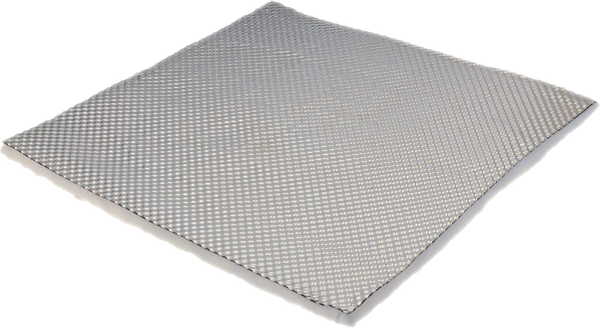

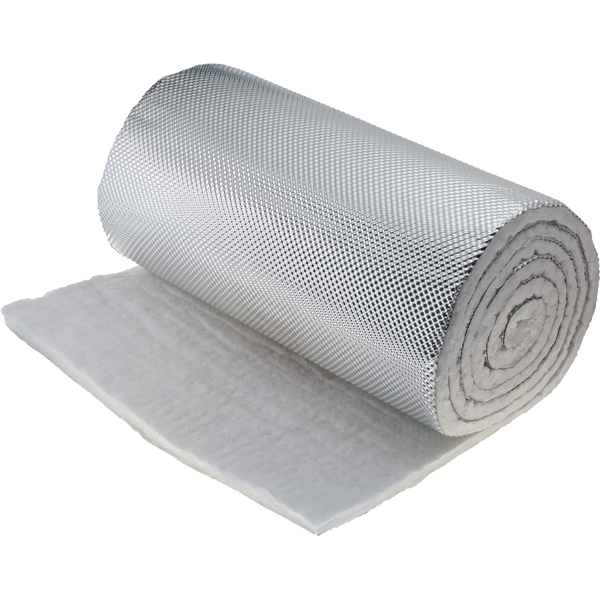

The outer armor of Heatshield Armor™ is resistant to the elements, giving the shield a long life. We use either a 1/4" (0.64cm) or 1/2" (1.3cm) BioCool thermal barrier inner pad, bonded to a heavy-duty foil outer layer using a proprietary process. This makes it capable of withstanding 982 degrees C continuously, which allows this Heatshield to be placed directly on exhaust systems, turbo manifolds, downpipes and diesel particulate filters (check with state regulations regarding usage on DPF). BioCool is a non-caustic, non-flammable thermal barrier. It does not cause itching and won’t smoke or smell the first time it is heat-cycled. This makes it a far superior insulator compared to the clamp-on heatshields that allow heat to escape because they are set above the pipe and not directly insulating it. This exhaust heat shield material is flexible, easy to cut (you can use a pair of heavy-duty scissors) and easy to install, and can be cleaned after installation.

A distinct Heatshield Armor™ advantage over an all-alloy exhaust Heatshield conduction with one hot side and one cold side: There is no metal-to-metal contact layer. Heatshield Armor™ can even be repaired with Heatshield Armor™ Weld tape. Heatshield Armor™ is available in two thicknesses: 1/4" (0.64cm) for most naturally aspirated applications and 1/2" (1.3cm) for forced-induction and racing applications.

Our range of Heatshield Armor™ are available for next day delivery across the UK, subject to stock. See our delivery terms for more details.
